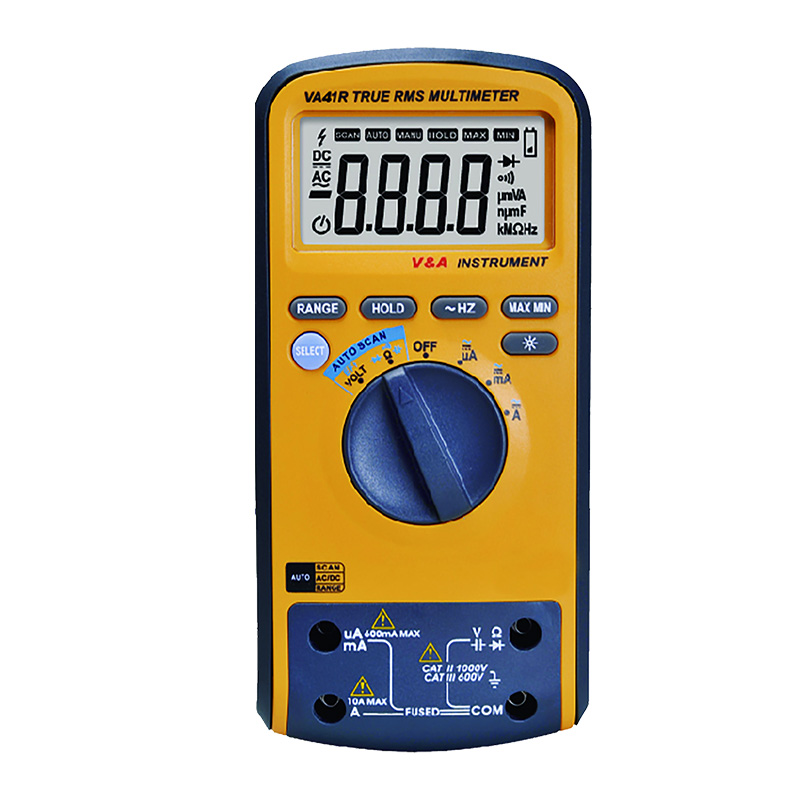

Auto Scan 6000 Counts CAT IV 600V Digital Multimeter With Electric Field Detector VA41/VA41R

VA41R

This auto scan digital multimeter is ideal for use in the fields, workshop, school, hobby and home applications. The auto scan digital multimeter also have true RMS function option.
This instrument complies with IEC 61010-1：2001, CAT Ⅲ 1000V and CAT Ⅵ 600V overvoltage standards. See Specifications

Send Inquiry

Description

Product Features：

DATA HOLD mode
Auto scan mode
Manual ranging and Autorange mode
Auto power off setting
AC and DC Voltage measurement

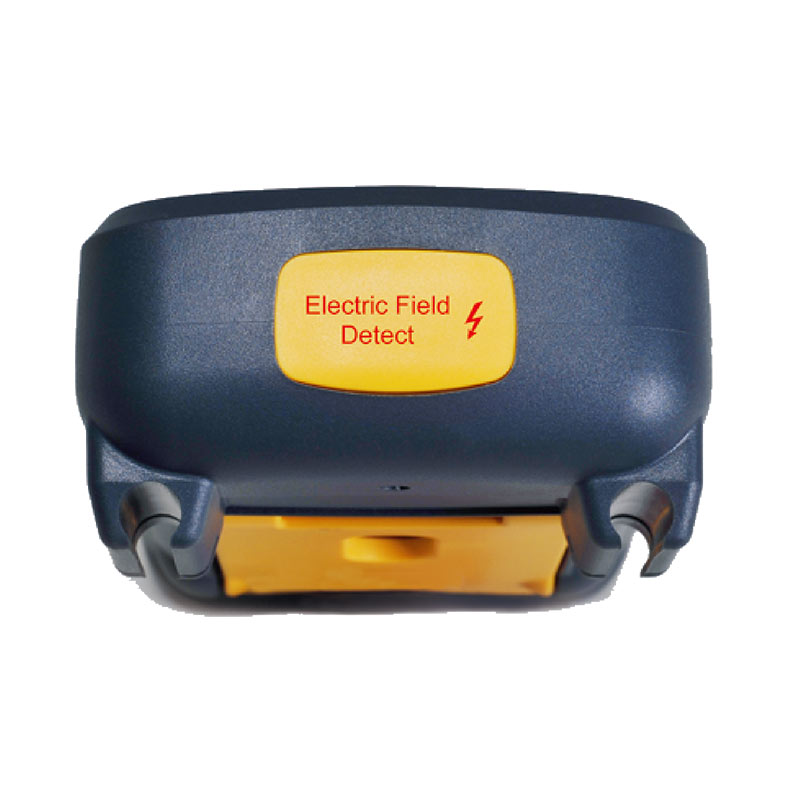

Non-contact electric field detector (EF mode)
Current measurement
Resistance Diode Continuity measurement
Capacitance measurement
Linear frequency measurement
General specifications
Environment conditions: 1000V CAT Ⅲ and 600V CAT Ⅳ
Pollution degree: 2
Altitude < 2000m
Operating temperature: 0~40℃, 32℉~122℉(<80% RH, <10℃ non-condensing)
Storage temperature: -10~60 ℃, 14℉~140℉(<70% RH, battery removed)
Temperature Coefficient: 0.1×(specified accuracy) / ℃ (<18℃ or >28℃)
MAX. Voltage between terminals and earth ground: 1000V AC rms or 1000V DC.
Fuse Protection: A and mA: F 0.63A/1000V∅ 10.3×38; A: F 10A/1000V ∅10.3×38.
Sample Rate: 3 times/sec for digital data.
Display: 3 5/6 digits LCD display. Automatic indication of functions and symbols.
Range selection: automatic and manual.
Over Range indication: LCD will display “OL”.
Low battery indication: The “” is displayed when the battery is under the proper operation range.
Polarity indication: “–” displayed automatically.
Power source: 9V
Battery type: 6F22.
Dimensions: 190(L)×90(W)×40(H) mm.
Weight: 500g. Approx. (battery included).

Product Parameters：

	VA41	VA41R
DC Voltage	600mV±0.5%, 6V/60V/600V±0.8%,1000V±1.0%
AC Voltage	600mV/6V/60V/600V±1.2%,1000V±1.5%
DC Current	600uA/6000uA/60mA/600mA/6A/10A±1.5%
AC Current	600uA/6000uA/60mA/600mA±1.5%,6A/10A±3.0%
Resistance	600Ω/6KΩ/60KΩ/600KΩ/6MΩ±1.2%,60MΩ±2%
Capacitance:	60nF±3.0%,600nF/6μF/60μF/600μF/6mF±5.0%(60mF)
Logic Frequency
Linear Frequency	6HZ~10KHZ±(0.05%+8)
Temperature

Features
Display Counts	5999	5999
Auto/manual range	√	√
True RMS Measurement		√
Relative measurement
Data hold	√	√
Peak hold
Back light	√	√
Electric field detector	√	√
Diode test	√	√
Continuity test	√	√
USB port connect to PC
Low power indication	√	√
Auto power off	√	√
Power	6F22(9V)X1	6F22(9V)X1
Size	190x90x40 mm	190x90x40 mm
Weight	~500g (including battery)	~500g (including battery)

Application and After-Sales Service：

With Functions of Non-contact electric field detector ,Voltage measurement, Current measurement, Resistance measurement, Linear frequency measurement, Diode and continuity Test,Auto Scan, Manual and Auto Range, this digital multimeter is ideal for use in the fields, workshop, school, hobby and home applications.

Accessories：

Delivered with the multimeter:

∞User’s manual	One piece
∞Test leads	One piece
