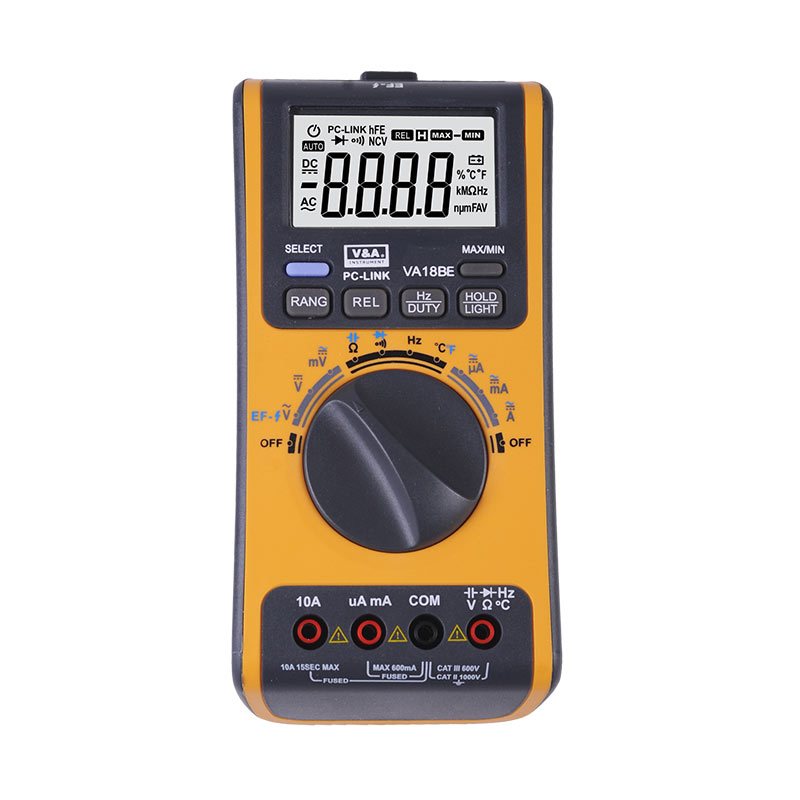

Autoranging Digital Multimeter With Relative Measurement & TRMS Function VA17/ VA18B

VA18B

The digital multimeter with RMS function has max display of 3999 counts and had won the IF product design award. It also has option of USB interface.
This digital multimeter with RMS function complies with IEC 1010-1 (61010-1@IEC: 2001), CAT. II 1000V and CAT. III 600V over voltage standards. See Specifications.

Send Inquiry

Description

Product Features：

General Functions.
DATA HOLD mode
Manual ranging and Auto range mode
Battery Saver
Measurement Functions
AC and DC Voltage measurement
Resistance measurement
Diode Test
Continuity Check
Capacitance measurement
Current measurement
General specifications
Environment conditions: 1000V CAT. II and 600V CAT. III
Pollution degree: 2
Altitude < 2000m
Operating temperature: 0~40℃, 32℉~122℉(<80% RH, <10℃ non-condensing)
Storage temperature: -10~60 ℃, 14℉~140℉(<70% RH, battery removed)
Temperature Coefficient: 0.1×(specified accuracy) / ℃ (<18℃ or >28℃)
MAX. Voltage between terminals and earth ground: 1000V AC rms or 1000V DC.
Fuse Protection: A and mA: F 500mA/600V ∅5×20; A: F 10A/600V ∅6.3×32.
Sample Rate: 3 times/sec for digital data.
Display: 3 3/4 digits LCD display. Automatic indication of functions and symbols.
Range selection: automatic and manual.
Over Range indication: LCD will display “OL”.
Low battery indication: The “” is displayed when the battery is under the proper operation range.
Polarity indication: “–” displayed automatically.
Power source: 9V
Battery type: 6F22.
Dimensions: 180(L)×85(W)×45(H) mm.
Weight: 360g. Approx. (battery included).

Product Parameters：

	VA17	VA18B
DC Voltage	0.1mV~1000V±(0.5%+3)
DC Current	0.1μA~10A±(1.5%+3)
AC Voltage	0.1mV~1000V±(1.0%+3)
AC Current	0.1μA~10A±(1.5%+3)
Resistance	0.1Ω~40MΩ±(0.5%+2)	0.1Ω~60MΩ±(0.5%+2)
Capacitance	0.01nF~100μF±(3.0%+5)	0.01nF~6mF±(3.0%+5)(60mF)
Frequency/Duty Cycle	10HZ~100HZ±(0.1%+3)	10HZ~1MHZ±(0.1%+3)
Temperature	-55~1000℃±(2.0%+1℃)

Features
Display	3999	5999
RMS function		√
USB interface		√
Diode test/Buzzer	√	√
Relative measurement	√	√
Data hold	√	√
Auto power off		√
Temperature test	√
Power	6F22(9V)X1	6F22(9V)X1
Size	180x85x45 mm	180x85x40 mm
Weight	~360g（including battery）	~310g（including battery）

Application and After-Sales Service：

This meter is a portable professional measuring instrument with large LCD and back light easily reading. Single operation of a range switch makes measurement convenient. It is an ideal multi-function Instrument with scores of practical applications for professional, workshop, school, hobby and home use.

Accessories：

Delivered with the multimeter:

Test Leads: Electric Ratings

1000V 10A

One piece

Battery: 9V, NEDA

1604 or 6F22

One piece

Operating Manual

One piece

General Maintenance:

Periodically wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents.
Dirt or moisture in the terminals can affect readings.
To clean the terminals:
Turn the meter off and remove all test leads.
Shake out any dirt that may be in the terminals.
Soak a new swab with a cleaning and oiling agent (such as VA-41).
Work the swab around in each terminal. The oiling agent insulates the terminals from moisture-related contamination.
