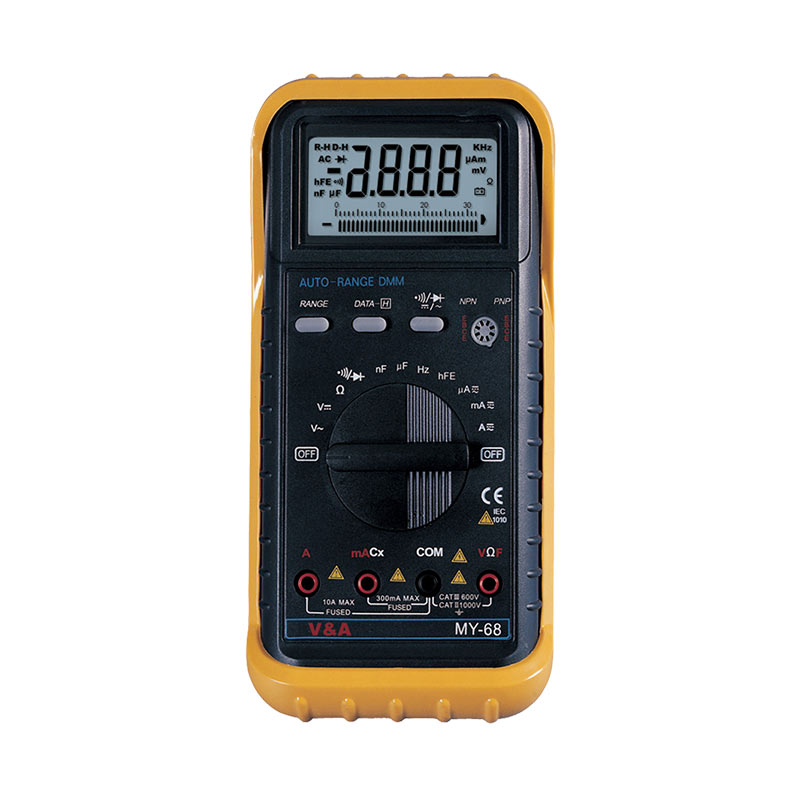

Classical Auto Ranging Digital Multimeter MY67/ MY68

MY68

This classical digital meter is an auto ranging professional instrument with 3 3/4 digit LCD display, capable of performing functions:
DC voltage measurement
AC voltage measurement
DC current measurement
AC current measurement
Resistance measurement
Capacitance measurement
Frequency measurement
Diode test
Transistor test
Audible continuity test
This classical digital meter has been designed according to IEC-61010 concerning electronic measuring instruments with an over voltage category ( CAT III) and pollution 2

Send Inquiry

Description

Product Features：

General Functions.
– DC voltage measurement
– AC voltage measurement
– DC current measurement
– AC current measurement
– Resistance measurement
– Capacitance measurement
– Frequency measurement
– Diode test
– Transistor test
– Audible continuity test
General specifications
POWER SUPPLY: 9V battery, NEDA 1604 or 6F22
DISPLAY: LCD, 3999 counts MAX, updates 2-3/sec
MEASURING METHOD: Dual – slope integration A/D converter
OVERRANGE INDICATION: “OL” figure only on the display
POLARITY INDICATION: “–” displayed for negative polarity
LOW BATTERY INDICATION:“ ”displayed
OPERATING TEMPERATURE: 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE: -10°C to 50°C (14°F to 122°F)
DIMENSION: 91×189×31.5mm
WEIGHT: 310g (including battery)

Product Parameters：

	MY67	MY68
DC Voltage	400mV±0.8%/4/40/400V±0.5%,1000V±0.8%	326mV±0.5,3.26/32.6/326V±0.3%,600±0.5%
AC Voltage	4/40/400V±0.8%,700V±1.2%	3.26/32.6/326V/600V±0.8%
DC Current	4mA±0.8%, 400mA±1.2%, 10A±2%	0.326/3.26/32.6/326mA±1.2%,10A±2.0%
AC Current	4mA±1.2%, 400mA±1.6% 10A±3.0%	0.326/3.26/32.6/326mA±1.5%,10A±3.0%
Resistance	400/4K/40K/400K/4MΩ±0.8%,40MΩ±1.2%	326/3.26K/32.6K/326K/3.26MΩ±0.8%,32.6MΩ±1.2%
Capacitance	4nF±(5.0%+5),40nF/400nF/4uF/100uF±(3.0%±3)	326n/326μF±3.0%
Frequency	10/100/1K/10K/100KHZ±2%	32.6KHz±1.2% 150KHz±2.5%
Temperature	-20℃~1000℃	-20℃~1000℃
Inductance

Features
LCD Size	30×60 mm	30×60 mm
Display	3999	3260
Auto range	√	√
Diode test	√
Data hold	√	√
Continuity Checking		√
Back Light
Relative Measurement
Digital and Analog Bar Graph		√
Auto power off	√
Battery	6F22(9V)X1	6F22(9V)X1
Size	91x189x31.5 mm	91x189x31.5 mm
Weight	~ 310 g (including battery)	~ 310 g (including battery)

Application and After-Sales Service：

This meter is a portable professional measuring instrument with large LCD and back light easily reading. Single operation of a range switch makes measurement convenient. It is an ideal multi-function Instrument with scores of practical applications for professional, workshop, school, hobby and home use.

Accessories：

Test leads Electric Rating 1500V, 10A 1 couple
Battery 9V NEDA 1604 or 6F22 1 pcs
Operating Manual 1 pcs
Holster 1 pcs
Capacitance Testing Adapter 1 pcs

General Maintenance:
