Product Features：

• MAXIMUM VOLTAGE BETWEEN TERMINALS AND EARTH GROUND: 1000V DC or 700 rms AC (sine)
• FUSE PROTECTION: mA: F 200mA/250V (A: unfused)
• POWER SUPPLY: 9V battery, NEDA 1604 or 6F22
• DISPLAY: LCD, 1999 counts MAX, updates 2-3/sec
• MEASURING METHOD: Dual – slope integration A/D converter
• OVERRANGE INDICATION: “OL” figure only on the display
• POLARITY INDICATION: “–” displayed for negative polarity
• LOW BATTERY INDICATION:“ ”displayed
• OPERATING TEMPERATURE: 0°C to 40°C (32°F to 104°F)
• STORAGE TEMPERATURE: -10°C to 50°C (14°F to 122°F)
• DIMENSION: 91×189×31.5mm
• WEIGHT: 310g (including battery)

Product Parameters：

Application and After-Sales Service：

With Functions of Voltage measurement, Current measurement, Capacitance measurement, Frequency measurement ,Resistance measurement, Diode test, Transistor Test, Continuity Test and Temperature Test, this digital multimeter is ideal for use in the fields, workshop, school, hobby and home applications.

Accessories:

Test leads Electric Rating 1500V, 10A       1 couple
Battery 9V NEDA 1604 or 6F22                 1 pcs
Operating Manual                                       1 pcs
Holster                                                         1 pcs
Capacitance Testing Adapter                     1 pcs
OPTIONAL ACCESSORY: “k” thermocouple

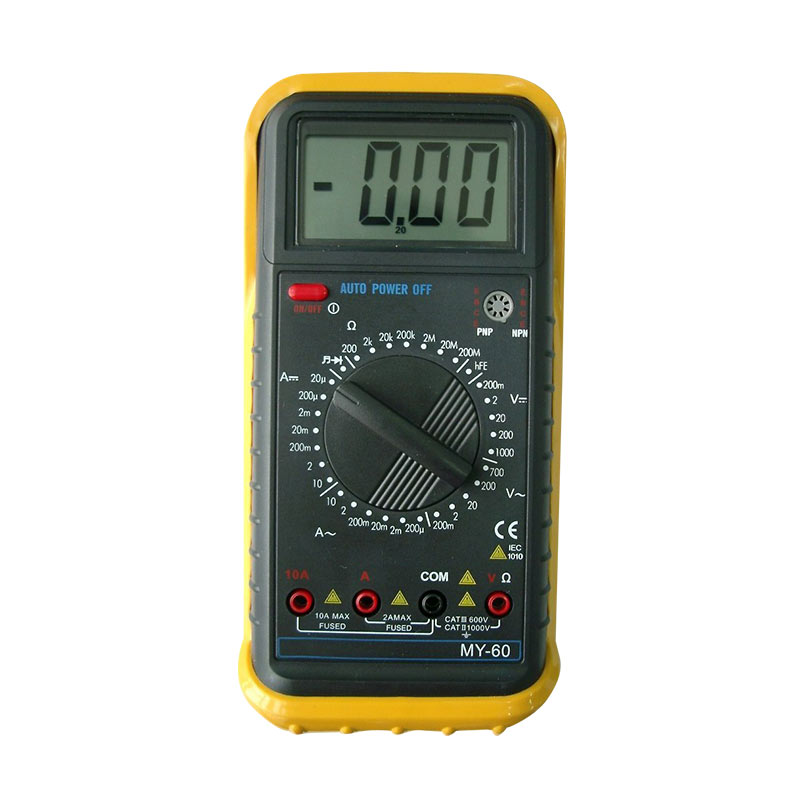

NAMES OF COMPONENTS
1.Power switch
2.Capacitor measurement socket
3.Temperature measurement socket
4.LCD display
5.Transistor test socket
6.Rotary switch
7.Input jacks
