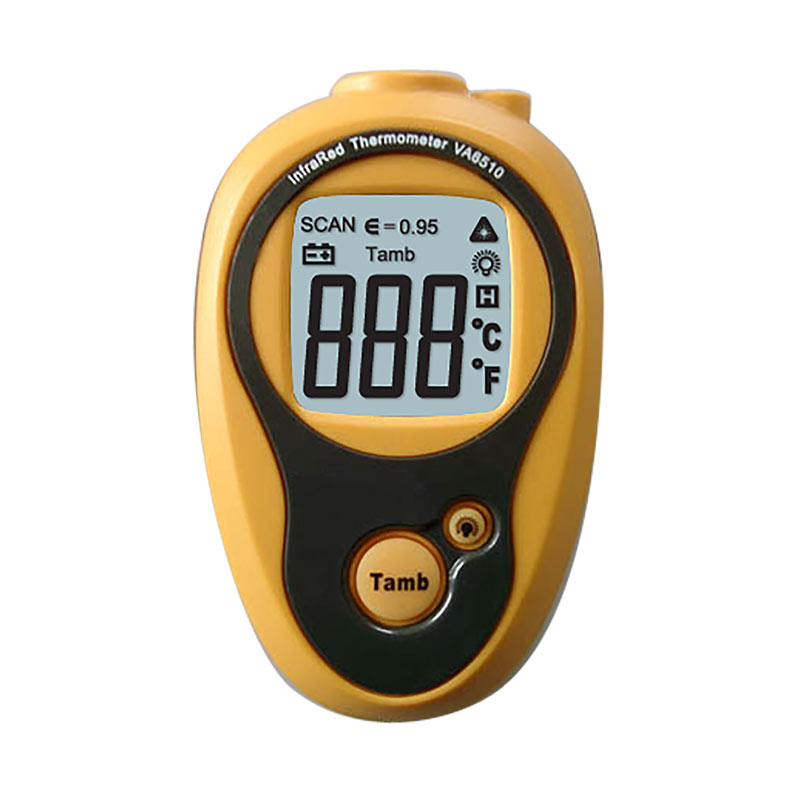

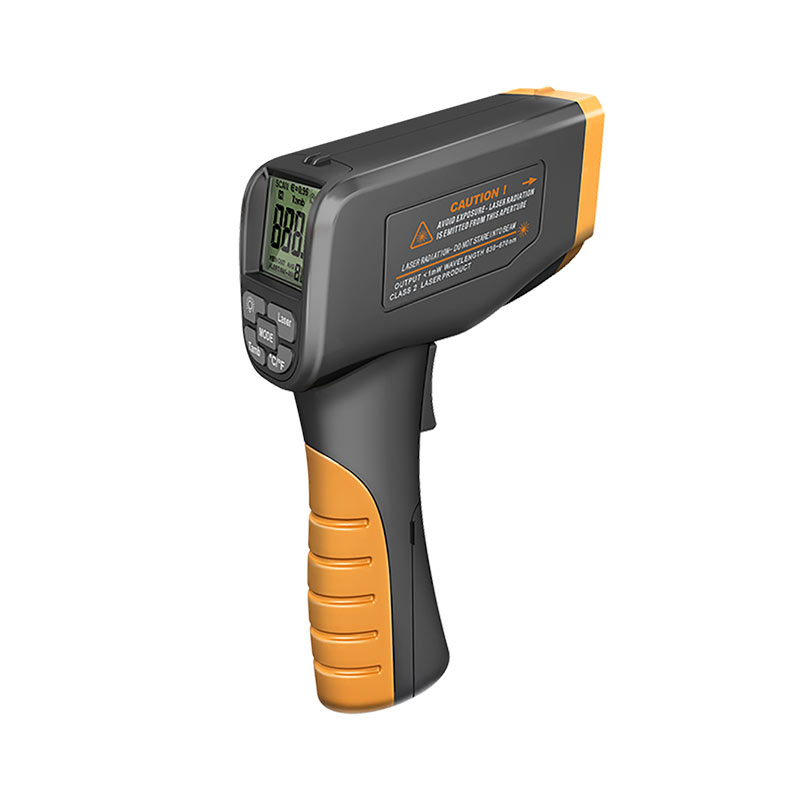

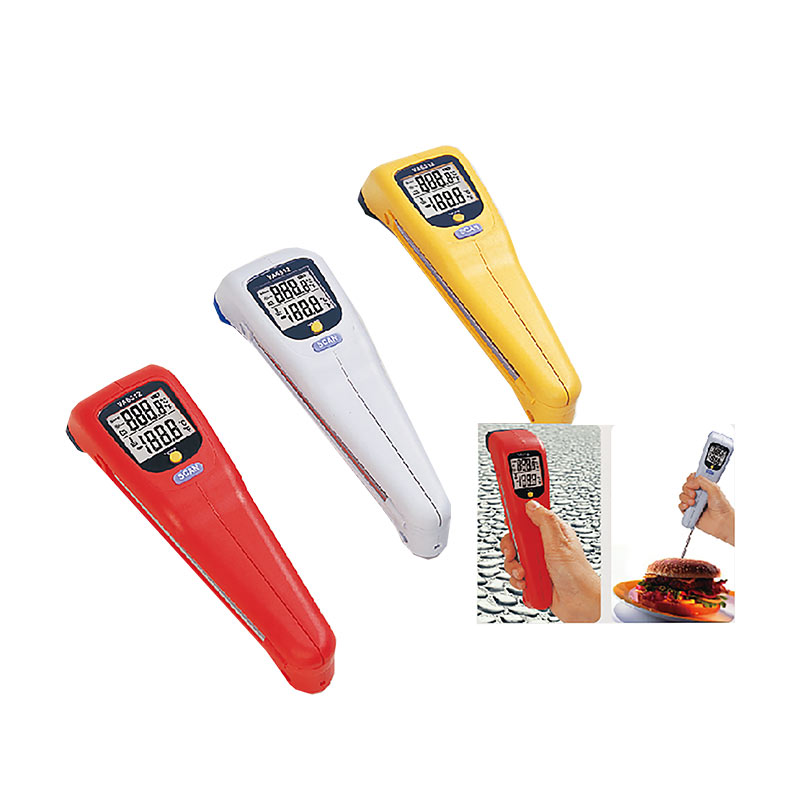

Infrared Thermometer VA6530A/VA6510/VA6512/VA6520

Infrared thermometers detect infrared energy emitted by objects. The Infrared thermometer focuses energy through its lens, changing the temperature of a special material that creates an electrical signal. A microcomputer processes this signal and displays the output on the panel of the thermometer. The laser is used only for sighting the instrument and has no other effect on temperature measurement.

Send Inquiry

Description

Product Features：

LCD Display: 2-temperature, 4 digits
Distance to Spot Ratio: 12:1
Emissivity: Fixed at 0.95 (Model A and C)
Adjusted from 0.10 to 1.00/step: 0.01 (Model B)
Spectral Response: 8-14μm
Measurement Range: -20°C ~ 537°C / -4°F ~ 999°F
Alarming temperature range (Model C): 30°C ~ 535 °C / 86°F ~ 995°F
Accuracy: -20°C ~ 50°C: ±2.5°C 50°C ~ 537°C ± (reading×1%+1°C)
Response Time: 1.5 seconds
Laser Power: Less than 1 mW
Auto-off: After 10 seconds
Backlight: White
Operating Environment: 0~ 40°C, 10~90%RH
Storage Environment: -10°C ~ 60°C, <75%RH
Battery: 9Volt, 6F22
Size: 162mm (L) × 56mm (W) ×190mm (H)

Product Parameters：

	VA6530A	VA6520	VA6512	VA6510
Measurement range	-20℃~50℃±2.5℃	-50℃~-20℃±5℃	-30℃~0℃±4℃	-20℃~0℃±5℃
	50℃~537℃(reading*1%+1℃)	-20℃~500℃±(reading x 1.5%±2℃)	0℃~270℃±(reading x 1.5%±2℃)	0℃~270℃±(reading x 1.5%±3℃)
	(-4℉~999℉)	(-58℉~932℉)	(-22℉~518℉)	(-4℉~518℉)
Resolution	0.1℃	0.1℃	0.1℃	1℃
TAMB Measurement		0~50℃		0~50℃
D:S ratio	12:1	8:1	6:1	6:1
Response time	1seconds
Spectral response	8~14μm
Laser power	< 1mW
Typical distance to target	up to 1.5m	up to 1.5m	up to 1m	up to 1m
Over range indication	“OL” or “-OL”	“OL” or “-OL”	“OL” or “-OL”	“OL” or “-OL”
Emissivity	0.1-1.00 Adjustable	0.95	0.95	0.95
Auto power off	20s	20s	30s	30s
Features
Two measurement mode			Infrared and Probe
Single dot laser targeting	√	√	√	√
Back light	√	√		√
Display selection	℃/℉	℃/℉	℃/℉	℃/℉
MAX/MIN/AVG value	√	√
Hold function	√	√	√	√
Low battery indication	√	√	√	√
Size	162× 56 ×190 mm

Application and After-Sales Service：

● After abrupt ambient temperature changes, allow instrument temperature to stabilize for 30 minutes before using for measurement.
● Avoid operating near strong electromagnetic fields such as arc welders, induction furnaces, etc.
● Do not expose thermometer to excessive ambient temperatures.
● Keep the thermometer clean and avoid getting dust into the detector’s optics.
● Do not use solvents to clean the meter.

Accessories：

9V battery………………………….1 pcs
Operating manual…………………1 pcs
Carrying bag………………………1 pcs
