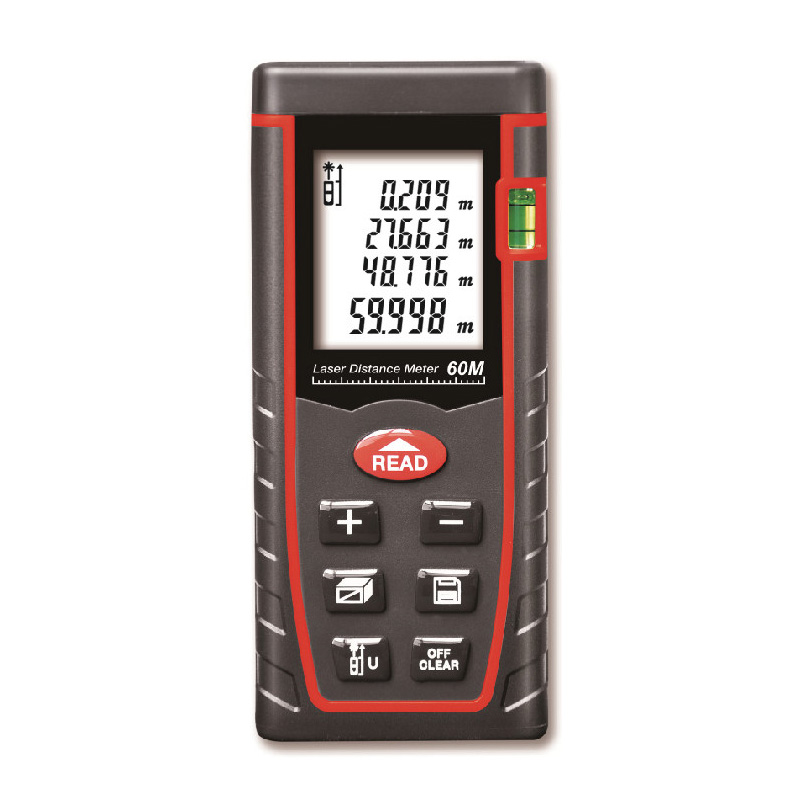

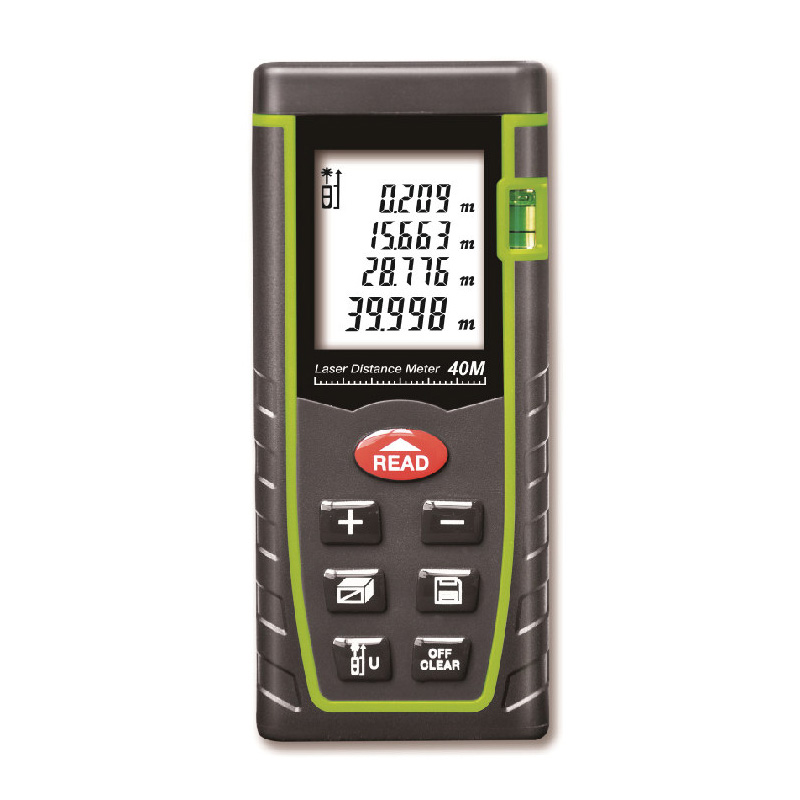

The VA-T series laser distance meters are portable devices that can easily and accurately measure length, area, and volume by pressing one button on. The laser distance meters can be used in interior/exterior design, construction, factory supervision, engineering inspection, traffic accident evidence gathering, real estate development, fire assessment, and more.
VA-T40 | VA-T60 | VA-T80 | VA-T100 | |
Measurement range | 0.05-40m | 0.05-60m | 0.05-80m | 0.05-100m |
Measuring Accuracy | ±2mm | |||
Measuring Unit | mm/in/ft | |||
Display Type | LCD FSTN | |||
Laser Type | 635 nm | |||
Laser Class | Class 2 | |||
Max storage | 100 Units | |||
Area Measurement | √ | |||
Volume Measurement | √ | |||
Triangle leg Measurement | √ | |||
Continuous Measurement | √ | |||
Max. / Min.Measurement | √ | |||
Addition / Subtraction | √ | |||
Operating Temperature | 0℃-40℃ | |||
Storage Temperature | -20℃-60℃ | |||
Storage Humidity | RH85% | |||
Features | ||||
Automatic laser off | 20 s | |||
Automatic shutdown | 150 s | |||
Backlight | √ | |||
key tone | √ | |||
Battery | 1.5V 2*AAA | |||
Size | 112x50x25mm | |||
Weight | 90g |
These tools can be used in interior/exterior design, construction, factory supervision, engineering inspection, traffic accident evidence gathering, real estate development, fire assessment, and more
The meter should not be stored in high temperature and strong humidity environment for long time; if it is not used very often, please take
out the batterhy and place the meter in the allocated portable bag and store in cool and dry place.
Please keep the device surface cleaning. wet soft cloth is applied to clean dust, but erosion liquid is never allowed to use for the meter
maintenance. laser output window and its focus lens can be maintained according to maintenance procedures for optical device.
