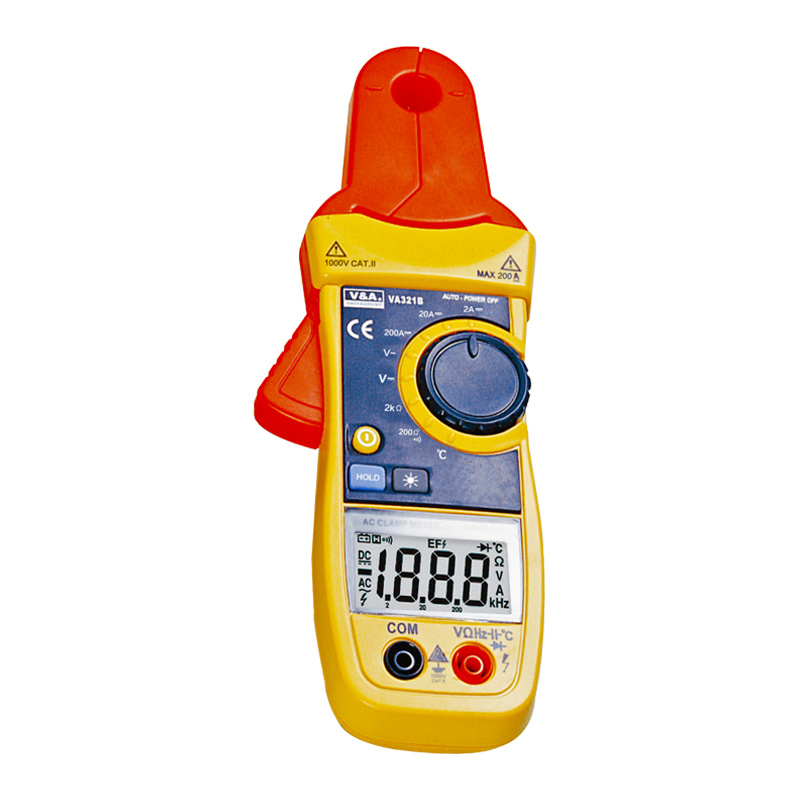

Leakage Current AC&DC Digital Clamp Meter VA321A/ VA321B/VA322

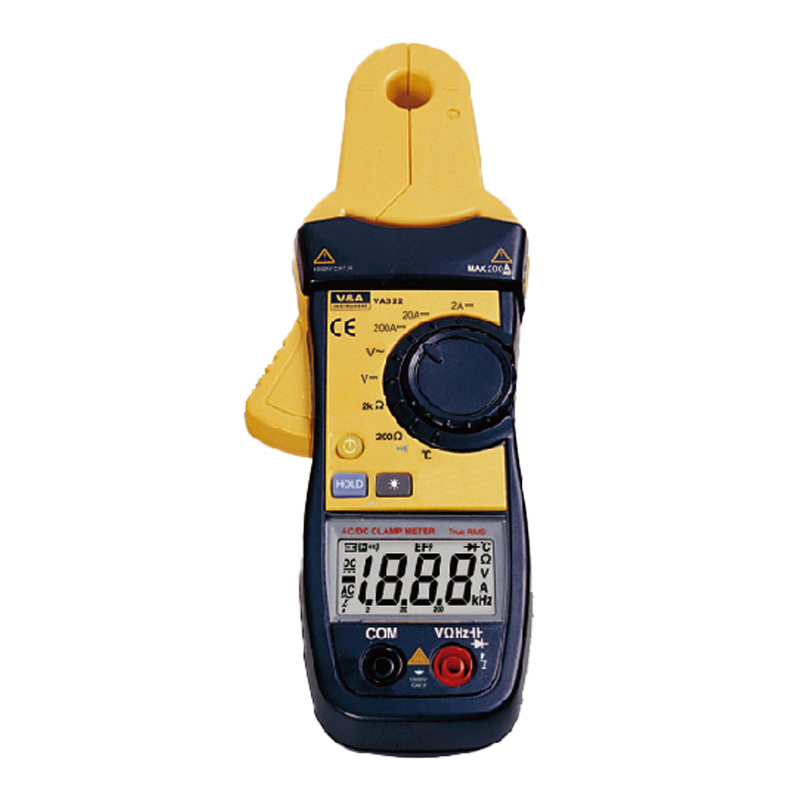

VA322

This leakage current AC&DC digital clamp meter has been designed according to IEC61010-1 and IEC61010-2-032 concerning safety requirements for electrical measuring instruments and handheld current clamps with over voltage category 1000V CAT II 600V CAT III and pollution 2.
The leakage current AC&DC digital clamp meter is a handheld 3 1/2 digital clamp meter for measuring DC and AC voltage, AC current, Resistance, Diode and Continuity Test etc with battery operated.

Send Inquiry

Description

Product Features：

Maximum voltage between terminals and earth ground: CAT II 1000V and CAT III 600V
Display: LCD, 1999 counts, updates 2-3/sec.
Polarity indication: “-” displayed for negative polarity.
Over range indication: Only figure “1” on the display.
Jaw opening capability: 14mm (Max conductor size)
Power: 4.5V (3×1.5V AAA)
Low battery indication: “” appears on the display.
Operating temperature: 0°C to 40°C.
Storage temperature: -10°C to 50°C
Altitude: 2000m
Size: 230mm×86mm×32mm
Weight: Approx. 310g

Product Parameters：

	Range	Resolution	Accuracy	VA321A	VA321B	VA322
Voltage
1000V DC	0~1000V	1V	0.8%+5	√	√	√
750V AC	0~750V	1V	1.2%+5	√	√	√
Current
2.000A	0~2.000A	1mA	3%+15	AC	AC	AC/DC
20.00A	0~20.00A	10mA	3%+10	AC	AC	AC/DC
200.0A	0~200.0A	100mA	3%+15	AC	AC	AC/DC
Resistance
200.0Ω	0.0~200.0Ω		1.0%+8	√	√	√
2.000KΩ	0.000~2.000KΩ		1.0%+8	√	√	√
Temperature	-40~750℃		1.0%+5		√	√
NCV				√
Power				1.5V battery ( AAA )×3
Size				230×86×32 mm
Weight				~310g (including battery)

Application and After-Sales Service：

With Functions of Voltage measurement, Current measurement, Resistance measurement, Continuity test, Non-contact AC Voltage detector, this digital clamp meter is ideal for use in the fields, workshop, school, hobby and home applications.

Accessories：

Operator’s instruction manual
Set of test leads
Gift box
Batteries: 3×1.5V AAA
